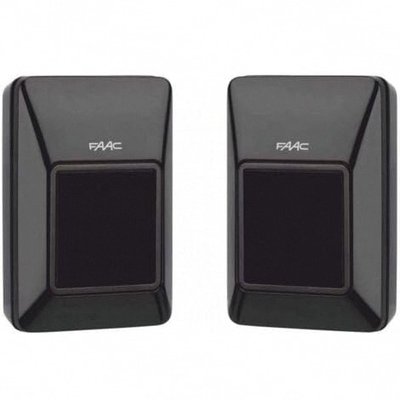

FAAC 785121 - Pair of XP30B LC BUS Photocells 30m (replaces 785106)

FAAC 785121 - Pair of XP30B LC BUS Photocells 30m (replaces 785106)

The FAAC XP30B LC photocells are type D safety devices compliant with the EN 12453 standard, designed for sliding and swing gate automation systems.

This model (code 785121) represents the evolution of the previous FAAC code 785106, maintaining full compatibility but introducing a more efficient low-consumption version.

They use 2-wire, non-polarized BUS 2easy technology, which allows for quick and easy installation, reducing installation time and the possibility of errors.

The photocells offer a nominal range of up to 30 meters and are equipped with an automatic alignment system, which facilitates correct positioning even during installation.

They can be wall-mounted or mounted on a column and are suitable for outdoor use thanks to their IP54 protection rating.

Thanks to BUS technology, up to 16 pairs of photocells can be connected in the same system, making them ideal for even complex and professional installations.

Main features:
• 24V 2-wire, non-polarized BUS 2easy power supply
• Low Consumption Technology
• Range up to 30 meters
• Automatic alignment (±7° up to 20 m)
• IP54 protection rating
• Wall or column installation
• Safety device compliant with EN 12453
• Original FAAC spare part

Compatible accessories:
• Aluminum column, max. height 628 mm (code 401028)
• Foundation plate for column (code 737630)
• Double high column (code 401035)
• Adapter for column or recessed mounting (code 401065)
• Adapter for external tube (code 401064)

The FAAC XP30B LC photocells are a reliable and professional solution for increasing safety in gate automation systems, ensuring precision, ease of installation, and maximum compatibility with FAAC BUS systems.
