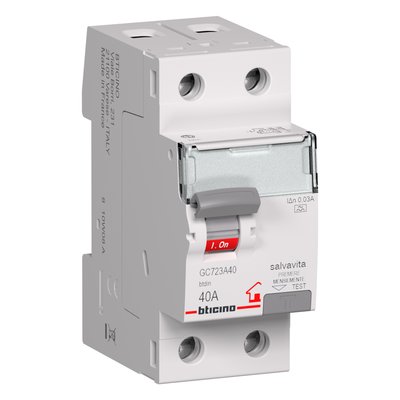

BTicino GC723A40 - SALVAVITA 2P 40A 30mA Type A Residual Current Device (RCD), 2 DIN Rail

BTicino GC723A40 - SALVAVITA 2P 40A 30mA Type A Residual Current Device (RCD), 2 DIN Rail

The BTicino GC723A40 residual current device from the SALVAVITA BTDIN series is a residual current device designed to protect people against indirect contact and earth leakage in residential and commercial electrical systems. The 2P Type A 40A 30mA configuration is ideal for domestic electrical panels, dedicated lines, and modern systems with electronic equipment.

The Type A RCD is suitable for protecting circuits with electronic devices, modern appliances, air conditioners, inverters, switching power supplies, and loads that can generate pulsating residual currents.

Main Features:

Salvavita® Pure Residual Current Circuit Breaker
BTicino BTDIN Series
2-pole configuration
Rated current 40A
Residual current sensitivity 30mA
Residual current type A
DIN rail installation
2 DIN modules
Protection against earth leakage
Ideal for civil and residential systems
Compatible with modern and electronic systems

Technical Specifications:

Product Code: GC723A40
Brand: BTicino
Series: BTDIN
Reference Standard: CEI EN 61008-1
Rated voltage: 230/400Vac
Rated current In: 40A
Residual current Idn: 0.03A
Residual current type: A
Number of poles: 2P
Number of DIN modules: 2
Degree of protection: IP20
Maximum cable cross-section: 25/35 mm²

Dimensions:

Height: 83 mm
Width: 35.6 mm
Depth: 76 mm

The Pure Residual Current Circuit Breaker SALVAVITA is generally installed in combination with circuit breakers to ensure both differential protection and protection against overloads and short circuits.

Installation recommended by qualified personnel in accordance with current CEI regulations. Technical data taken from the official BTicino catalog and BTDIN series technical documentation.
