DESCRIPTION

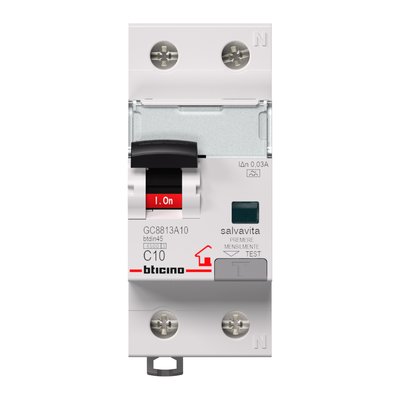

BTicino GC8813A10 - 1P+N 10A 30mA Type A 4.5kA Residual Current Circuit Breaker, 2 DIN Rail
The BTicino GC8813A10 residual current circuit breaker from the BTDIN-RS series is a modular device designed to protect residential and commercial electrical systems against overloads, short circuits, and earth leakage. The 1P+N configuration with C curve and type A residual current circuit breaker makes it ideal for lighting circuits, dedicated lines, and systems with modern electronic equipment.
With a rated current of 10A and a residual current sensitivity of 30mA, this residual current circuit breaker is a reliable solution for protecting lighting lines, automation systems, auxiliary circuits, and domestic appliances.
Main Features:
Residual Current Circuit Breaker
BTicino BTDIN-RS Series
Configuration 1P+N
Rated Current 10A
Residual Current 30mA
Residual Current Type A
Circuit Breaker Curve C
Breaking Capacity 4.5kA
Rated Voltage 230Vac
DIN Rail Installation
2 DIN Module Size
Protection against overloads and short circuits
Residual Current Protection against Earth Leakage
Ideal for residential and commercial installations
Technical Specifications:
Product Code: GC8813A10
Brand: BTicino
Series: BTDIN-RS
Reference Standard: CEI EN 61009-1
Rated Voltage: 230Vac
Rated Current In: 10A
Residual Current Idn: 0.03A
Residual Current Type: A
Tripping Curve: C
Breaking Capacity Icn: 4.5kA
Number of Poles: 2P (1P+N)
Number of Modules DIN: 2
Degree of protection: IP20
Maximum cable cross-section: 25/35 mm²
Dimensions:
Height: 83 mm
Width: 35.6 mm
Depth: 76 mm
The type A RCD is suitable for circuits with electronic devices, switching power supplies, LED drivers, air conditioners, household appliances, and equipment that can generate pulsating residual currents.
Installation recommended by qualified personnel in accordance with current IEC regulations. Technical data taken from the official BTicino catalog and BTDIN-RS series technical documentation.
