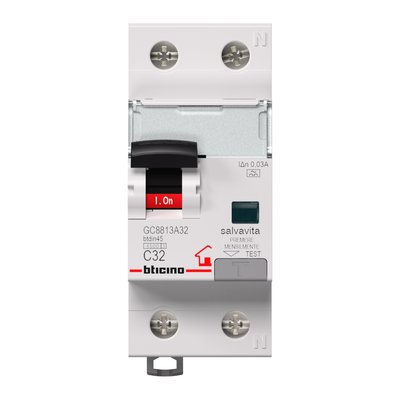

BTicino GC8813A32 - 1P+N 32A 30mA Type A 4.5kA Residual Current Circuit Breaker, 2 DIN Rail

BTicino GC8813A32 - 1P+N 32A 30mA Type A 4.5kA Residual Current Circuit Breaker, 2 DIN Rail

The BTicino GC8813A32 residual current circuit breaker from the BTDIN-RS series is a compact modular device designed to protect residential and commercial electrical systems against overloads, short circuits, and earth leakage. Its 1P+N configuration with C curve and type A residual current circuit breaker makes it particularly suitable for lines dedicated to electronic equipment, modern household appliances, and loads with electronic components.

With a rated current of 32A and a residual current sensitivity of 30mA, this residual current circuit breaker is an ideal solution for protecting sockets, air conditioners, household appliances, dedicated circuits, and small residential electrical panels.

Main Features:

Residual Current Circuit Breaker
BTicino BTDIN-RS Series
Configuration 1P+N
Rated Current 32A
Residual Current 30mA
Residual Current Type A
Circuit Breaker Curve C
Breaking Capacity 4.5kA
Rated Voltage 230Vac
DIN Rail Installation
2 DIN Module Size
Protection against short circuits and overloads
Residual Current Protection against Earth Leakage
Ideal for residential and commercial installations

Technical Specifications:

Product Code: GC8813A32
Brand: BTicino
Series: BTDIN-RS
Reference Standard: CEI EN 61009-1
Rated Voltage: 230Vac
Rated Current In: 32A
Residual Current Idn: 0.03A
Residual Current Type: A
Trip Curve: C
Breaking Capacity Icn: 4.5kA
Number of Poles: 2P (1P+N)
Number of Modules DIN: 2
Degree of protection: IP20
Maximum cable cross-section: 25/35 mm²

Dimensions:

Height: 83 mm
Width: 35.6 mm
Depth: 76 mm

The type A RCD is suitable for protecting circuits with electronic equipment, switching power supplies, inverters, air conditioners, washing machines, induction hobs, and devices that generate pulsating residual currents.

Installation recommended by qualified personnel in accordance with current IEC regulations. Technical data taken from the official BTicino catalog and technical documentation for the BTDIN-RS range.
