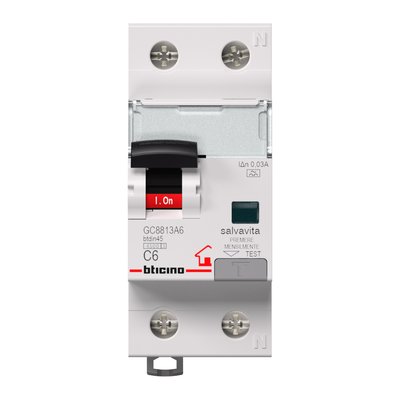

BTicino GC8813A6 - 1P+N 6A 30mA Type A 4.5kA Residual Current Circuit Breaker, 2 DIN Rail

BTicino GC8813A6 - 1P+N 6A 30mA Type A 4.5kA Residual Current Circuit Breaker, 2 DIN Rail

The BTicino GC8813A6 residual current circuit breaker from the BTDIN-RS series is a modular protection device designed to protect residential and commercial electrical systems against overloads, short circuits, and earth leakage. Its 1P+N configuration with C curve and type A residual current circuit breaker makes it particularly suitable for lines dedicated to electronic devices and modern loads with electronic components.

With its 4.5kA breaking capacity and 30mA residual current sensitivity, this residual current circuit breaker ensures high safety for people and systems, making it ideal for domestic electrical panels, dedicated circuits, and the protection of sensitive utilities.

Main Features:

Residual Current Circuit Breaker
BTicino BTDIN-RS Series
Configuration 1P+N
Rated Current 6A
Residual Current 30mA
Residual Current Type A
Circuit Breaker Curve C
Breaking Capacity 4.5kA
Rated Voltage 230Vac
DIN Rail Installation
2 DIN Module Size
Protection against short circuits and overloads
Residual Current Protection against Earth Leakage
Ideal for civil and residential installations

Technical Specifications:

Product Code: GC8813A6
Brand: BTicino
Series: BTDIN-RS
Reference Standard: CEI EN 61009-1
Rated Voltage: 230Vac
Rated Current In: 6A
Residual Current Idn: 0.03A
Residual Current Type: A
Tripping Curve: C
Breaking Capacity Icn: 4.5kA
Number of Poles: 2P (1P+N)
Number of DIN Modules: 2
Degree of protection: IP20
Maximum cable cross-section: 25/35 mm²

Dimensions:

Height: 83 mm
Width: 35.6 mm
Depth: 76 mm

The type A RCD is suitable for protecting circuits with electronic equipment, switching power supplies, modern household appliances, and devices with pulsating DC components.

Installation recommended by qualified personnel in accordance with current regulations. Technical data taken from the official BTicino catalog and manufacturer's technical documentation.
