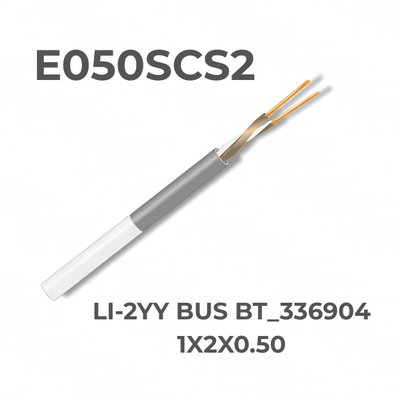

Prospecta E050SCS2BI - SCS BUS Cable 2x0.50mm² White Eca 100m BTicino 336904

Prospecta E050SCS2BI - SCS BUS Cable 2x0.50mm² White Eca 100m BTicino 336904

The Prospecta E050SCS2BI BUS cable is a 0.50 mm² twisted-pair cable designed for power and signal distribution in BTicino two-wire Multimedia BUS systems. Compatible with the BTicino 336904 cable, it is an ideal solution for video intercom, sound diffusion, automation, temperature control, and burglar alarm systems based on SCS technology.

Thanks to its white outer sheath and flexible twisted-pair construction, the cable guarantees excellent transmission performance and easy installation in residential and commercial applications. The 100-meter reel makes it particularly suitable for smaller systems or installations where a 200-meter reel would be excessive.

Main features:

BTicino compatible SCS BUS cable 336904
Power and BUS signal distribution
2 twisted conductors
Cross-section: 1x2x0.50 mm²
White RAL 9010 outer sheath
RCP Class Eca
Compatible with BTicino SCS systems
Suitable for video intercoms and sound diffusion
Also suitable for automation, temperature control, and burglar alarms
Installation in pipes, conduits, and cable trays
Underground installation in suitable pipes
High installation flexibility

Technical specifications:

Product code: E050SCS2BI
Brand: Prospettiva
Type: SCS BUS cable
Construction: LI-2YY
Cross-section: 1x2x0.50 mm²
Conductor: flexible copper
Conductor composition: 16 x 0.20 mm
Insulation: PE 2Y
Sheath: PVC YM2
Outer diameter: 4.80 ± 0.10 mm
Sheath color: White RAL 9010
CPR Class: Eca
Roll length: 100 m

Application compatibility:

BTicino SCS video intercom systems
BUS sound diffusion
BUS automation
SCS temperature control
BUS burglar alarm systems
Two-wire multimedia systems

Installation instructions:

Can be installed in conduits, walkways, and pipes
Suitable for installation in masonry with adequate protection
Can only be buried in suitable conduits
Laying separately from power cables is recommended
Do not run together with cables >50V

The Prospecta E050SCS2BI cable is a practical alternative to the BTicino cable 336904 for installations requiring smaller square footage, while maintaining compatibility with two-wire SCS BUS systems.

Installation recommended by qualified personnel in accordance with current CEI regulations. Technical data taken from technical data sheets and declared compatibility with BTicino SCS 336904.
