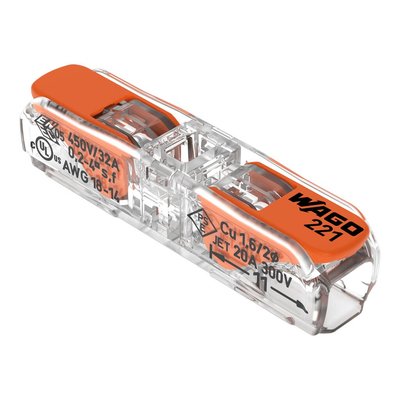

WAGO 221-2411 - 2-conductor inline lever connector, 4 mm², 221 Series

WAGO 221-2411 - 2-conductor inline lever connector, 4 mm², 221 Series

The WAGO 221-2411 is the inline version of the 221 COMPACT series: the two conductors enter from opposite ends and remain aligned along the cable axis. It is the ideal solution where there is no room for a standard lever connector or where a splice is needed that can slide into a cable duct, conduit, LED profile, or light fixture.

It operates just like the classic 221: strip the conductor by 11 mm, open the orange lever, insert the cable fully, and close the lever. No tools or screw adjustments are required; the connection is re-openable and reusable. CAGE CLAMP technology maintains constant contact pressure over time—independent of conductor cross-section or the installer's technique—and is resistant to vibration and thermal cycling.

Measuring just 8.1 mm in width and 8.9 mm in height, the 221-2411 accommodates solid, stranded, and fine-stranded conductors—even mixed types—making it perfect for repairing existing cables, extending appliance cords, wiring light fixtures, and making connections in tight spaces. TECHNICAL SPECIFICATIONS
Poles: 2 (inline connection)
Solid conductor cross-section: 0.2 – 4 mm²
Stranded conductor cross-section: 0.2 – 2.5 mm²
Fine-stranded conductor cross-section: 0.2 – 4 mm²
Rated voltage: 450 V (IEC/EN 60664)
Rated current: 32 A
UL ratings (Group C use): 600 V – 20 A
Connection technology: CAGE CLAMP with lever
Strip length: 11 mm
Dimensions (W x H x D): 8.1 x 8.9 x 35.5 mm
Insulating material: Polycarbonate (PC), transparent – ​​Class V2 (UL 94)
Cover: Transparent
Continuous operating temperature: -60 / +105 °C (T85 marking)
Weight: 2.3 g
Packaging: 60 pcs (industrial pack: 600 pcs)
RoHS: Compliant

INSTALLATION NOTES
Product intended for qualified personnel. Do not operate while live. Observe the specified cross-sections, conductor types, and strip lengths.
