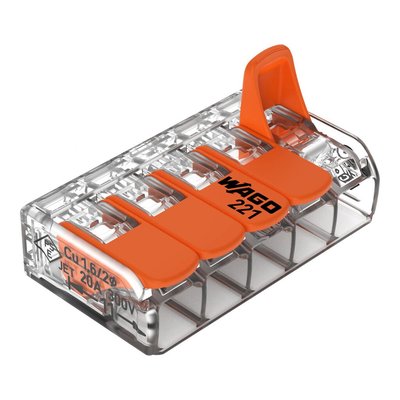

WAGO 221-415 - 5-Conductor Lever Connector, 4 mm², 221 Series

WAGO 221-415 – 5-Conductor Lever Connector, 4 mm², 221 Series

The WAGO 221-415 is the 5-pole connector from the 221 COMPACT series, the industry standard for connections in junction boxes, control panels, and appliances. The orange levers are operated by hand: simply strip the conductor by 11 mm, insert it fully, and close the lever. No tools or twisting of copper wires are required; the connection is reliable and can be reopened at any time.

CAGE CLAMP® connection technology ensures constant contact pressure over time—independent of conductor cross-section or the installer's technique—and is resistant to vibration and thermal cycling. The transparent polycarbonate housing allows for a quick visual check to ensure each conductor is correctly inserted, while the compact footprint (30 x 8.4 x 18.6 mm) frees up valuable space inside enclosures.

Suitable for both solid conductors used in residential wiring and flexible stranded wires found in appliances and cabling—such as ovens, cooktops, lighting fixtures, video intercoms, and control panels, as well as for repairs to existing systems. TECHNICAL SPECIFICATIONS
Poles: 5
Solid / stranded conductor cross-section: 0.2 – 4 mm²
Flexible conductor cross-section: 0.14 – 4 mm²
Rated voltage: 450 V (IEC/EN 60664)
Rated current: 32 A
UL 486C approval: 600 V – 20 A
Connection technology: CAGE CLAMP with lever
Strip length: 11 mm
Dimensions (W x H x D): 30 x 8.4 x 18.6 mm
Insulating material: Polycarbonate (PC), transparent – ​​Class V2 (UL 94)
Max. ambient temperature: +85 °C (T85 marking)
Weight: 4 g
Packaging: 25 pcs (industrial pack: 250 pcs)
Origin: Germany
GTIN: 4055143234658
RoHS: Compliant

INSTALLATION NOTES
Product intended for qualified personnel. Do not work on live circuits. Observe the specified conductor cross-sections, types, and strip lengths.
