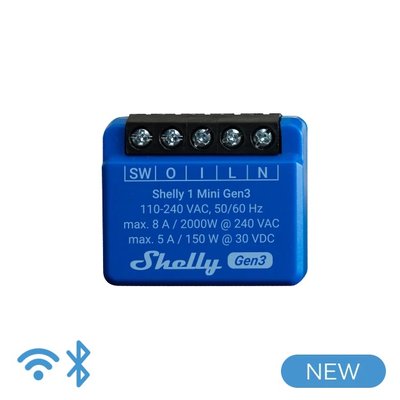

Shelly 1 Mini Gen3 - Single-channel smart relay switch, dry contact

Shelly 1 Mini Gen3 - Single-channel smart relay switch, dry contact

Shelly 1 Mini Gen3 is a third-generation micro smart relay with dry contact, 35% smaller than standard models. The potential-free output isolates the controlled load from the device supply, so it can switch AC or DC loads: gates, garage doors, boilers (thermostat contact), solenoid valves and door openers. Matter-ready, it also works as Wi-Fi range extender.

Power supply: 110-240 V AC, 50/60 Hz (neutral required)
Max load: 8 A / 240 V AC (1600 W) - 5 A / 30 V DC
Output: dry contact relay
SW input for traditional buttons or switches
Connectivity: Wi-Fi 2.4 GHz, Bluetooth 4.2
Dimensions: 29 x 34 x 16 mm
Weight: 18 g
Wire section: 0.5-1.5 mm²
Operating temperature: -20 °C to +40 °C

Compatible with Shelly Smart Control, Amazon Alexa, Google Home, Home Assistant, MQTT, HTTP, Webhooks, WebSocket and local JS scripting. Schedules, sunrise/sunset scenes and timers keep working without internet.
