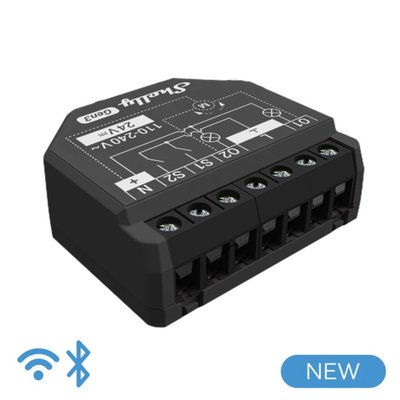

Shelly Plus 2PM Gen3 - 2-channel smart relay for roller shutters

Shelly Plus 2PM Gen3 - 2-channel smart relay for roller shutters

Shelly Plus 2PM Gen3 is a compact 2-channel smart relay for roller shutters, blinds, awnings, venetian blinds and gates, or for two independent lighting circuits. It fits in a standard wall box behind existing switches, with position calibration (percentage opening), slat tilt for venetian blinds and power metering on each channel. It also works as Wi-Fi range extender and Bluetooth gateway.

Power supply: 110-240 V AC / 24 V DC
Max load: 16 A total (10 A per channel)
Power metering on each channel (V, A, W, kWh)
Connectivity: Wi-Fi 802.11 b/g/n 2.4 GHz, Bluetooth 4.2
Protection: overheating, overload, overvoltage
Dimensions: 37 x 42 x 16 mm
Operating temperature: -20 °C to +40 °C

Compatible with Shelly Smart Control, Amazon Alexa, Google Home, Home Assistant, MQTT, HTTP, Webhooks, WebSocket and local JS scripting. Schedules, sunrise/sunset scenes and timers keep working without internet.
